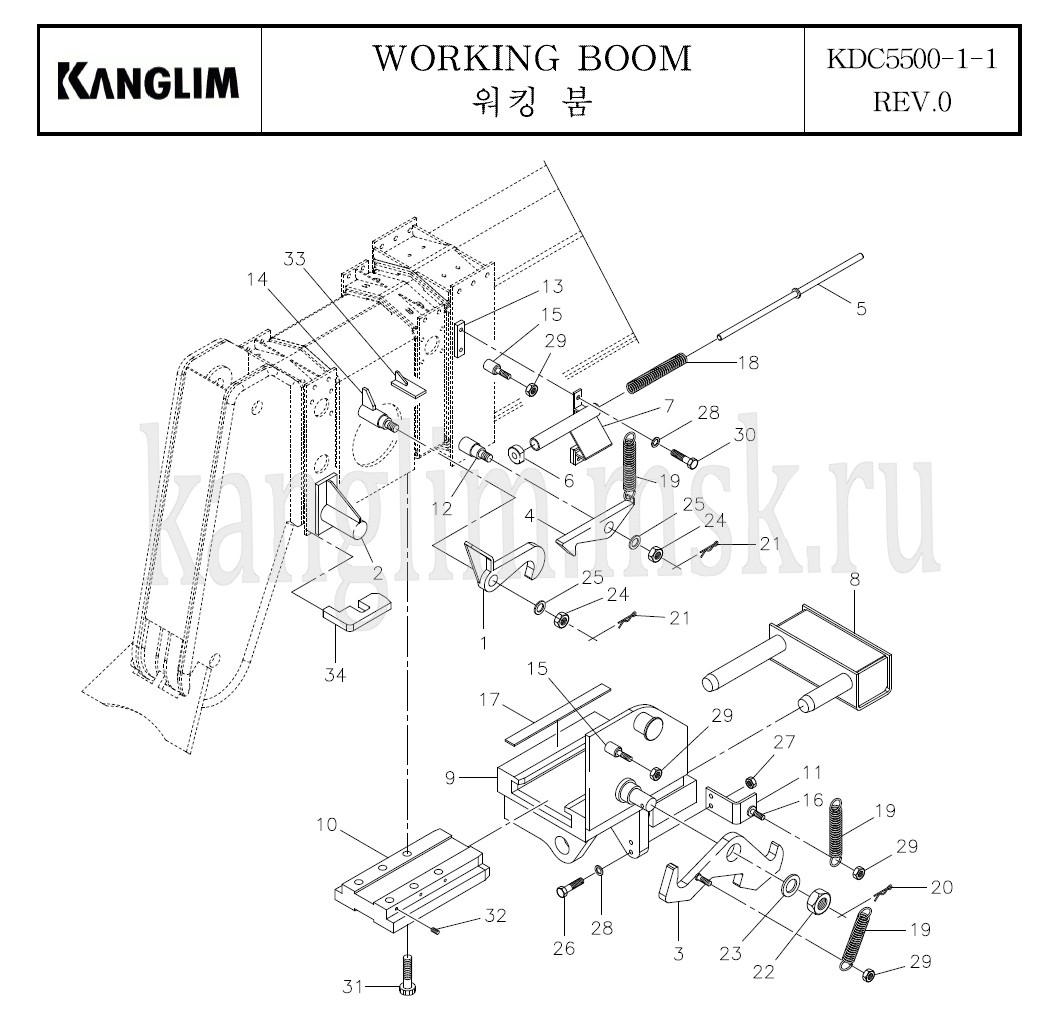

Крепление стрелы
.jpg "Kanglim KDC 5600 крепление стрелы")
| KANGLIM | КРЕПЛЕНИЕ СТРЕЛЫ | KDC 5600 | ||
| № | ДЕТАЛЬ № | ОПИСАНИЕ | КОЛ | ПРИМЕЧАНИЕ |
| A1050613R1 | WORKING BOOM | 1 | ||
| 1 | A1049970R1 | LEVER(A) | 1 | |
| 2 | W1099838 | B.K.T. LEVER(A) | 1 | |
| 3 | A1049988R1 | LEVER(B) | 1 | |
| 4 | A1049995 | LEVER© | 1 | |
| 5 | A1050008 | SHAFT(A) | 1 | |
| 6 | A1050022 | COVER | 1 | |
| 7 | A1050015R1 | BRACKET(A) | 1 | |
| 8 | W1099845 | BRACKET(B) | 1 | |
| 9 | A1050061R1 | BRACKET(С) | 1 | |
| 10 | A1050030 | PLATE, SLIDING | 1 | |
| 11 | A1050047R1 | PLATE(B) | 1 | |
| 12 | W1099927 | SHAFT(B) | 1 | |
| 13 | W1099860R1 | PLATE(K) | 1 | |
| 14 | W1099877R1 | SHAFT, HINGE(B) | 1 | |
| 15 | W1099884 | SHAFT(B) | 2 | |
| 16 | W1099891 |
SHAFT(С) |
2 | |
| 17 | W1099910 | PLATE(D) | 2 | |
| 18 | M1058042 | SPRING | 1 | |
| 19 | A1066838 | SPRING | 3 | |
| 20 | 13113418 | PIN, SPLIT | 1 | Ф7х50L |
| 21 | 13109010 | PIN, SPLIT | 2 | Ф4х30L |
| 22 | 31123061 | NUT, HEX | 1 | МЗО |
| 23 | 26123019 | WASHER, SPRING | 1 | МЗО |
| 24 | 31121669 | NUT, HEX | 2 | М16 |
| 25 | 36121616 | WASHER, SPRING | 2 | М16 |
| 26 | 211095況 | BOLT, HEX | 2 | М8х45 |
| 27 | 31120866 | NUT, HEX | 2 | М8 |
| 28 | 36120813 | WASHER, SPRING | 4 | М8 |
| 29 | 31121060 | NUT, HEX | 10 | М10 |
| 30 | 21108560 | BOLT, HEX | 2 | M8x15 |
| 31 | N050464 | BOLT, HEX SOCKET HEAD | 6 | М16хР1.5х45 |
| 32 | 23502574 | SCREW, SET | 6 | М4х8 |
| 33 | W1099934 | BRACKET(D) | 1 | |
| 34 | A1066578 | BRACKET | 1 | |
